5052 Automotive Aluminum Sheet

What Is 5052 Aluminium Sheet

5052 aluminum sheet.jpg 5052 aluminum sheet is an Al-Mg alloy. It has high strength, especially fatigue resistance, and high plasticity and corrosion resistance. With mature processing technology, Haomei 5052 aluminum sheet is of stable performance.

We can not only provide 1220*2440 and 1250*2500 conventional size, but also customize according to the customers’ specific need. We have aa thickness range of 0.1 -600mm, width range 20-2650mm, length range 500-16000mm, including multiple tempers to meet the diverse needs of users.

Specification of 5052 Automotive Aluminum Sheet

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Standard
5052	0.25	0.40	0.10	0.10	2.2-2.8	0.15-0.35	0.10	-	GB/EN/ASTM

Mechanical Properties

Alloy

Temper

Thickness(mm)

Yield Strength

Rp0.2(Mpa

Tensile Strength

Rm(Mpa)

Elongation

A50(%)

5052

H32

0.2-3.5

≥160

215-265

≥4

H36

≥200

255-305

≥2

Size

Alloy	Temper	Thickness(mm)	Width(mm)	Length(mm)
5052	H32/H34	0.2-3.5	2000-2650	≥10000

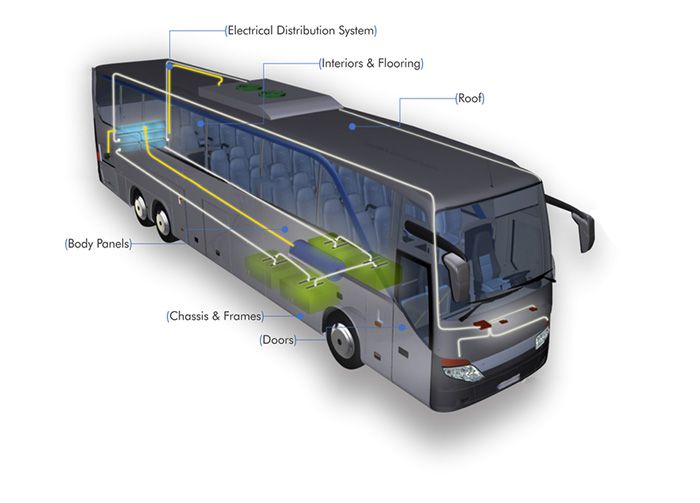

The Uses of 5052 Automotive Aluminum

5052-h32 automotive sheet is widely used for automotive engine outer panels, bus trunk panels, bus skid-proof panel, automotive fuel tank,etc.

Car compartment: The uses of aluminum can reduce the overall quality of the whole car to a certain extent, realize the lightweight of the car body, thereby reducing the emission of carbon dioxide, improving the fuel efficiency, and ensuring the energy-saving effect.

Coach body Panel: The 5052 aluminum body panel can can greatly reduce the weight of the car body to reduce energy consumption and lower the center of gravity of the vehicle, thus bringing more stable operation.

Air storage cylinder: It is to maintain the pressure of the compressed air system's pipe network without major fluctuations. The tensile strength of 5052-h32 aluminum is 210-260mpa, and the elongation is not less than 130. It is specially used for automobile gas storage tanks and automobile fuel tanks.

Car door: The car door is to provide a passage for the driver and passengers to enter and exit the vehicle and reduce side impact to a certain extent. The automotive aluminum for the car doors has been a mature product.

Luggage compartment of coach: It is a storage room for storing items. The length and width of luggage compartment panel is more than 1 meter. The 5052 aluminum plate is a common choice.

coach body panel.jpg

Features of 5052 Aluminium Sheet

The 5052 aluminium sheet has a small amount of chromium. The role of chromium is similar to that of manganese, which improves the resistance to stress corrosion cracking, improves the strength of the base metal and the weld, and reduces the tendency of welding cracks. These properties meet the performance requirements of coach body panel in terms of corrosion resistance and fatigue strength.

The Surface Quality of 5052 Auto Aluminum Plate

1. There is no in terms of corrosion resistance and fatigue strength.

2. The bubbles, surface roughness and local mechanical damage with a depth not exceeding 8% of the nominal wall thickness of the defect location are allowed on the surface, but the maximum depth of the defect cannot exceed 0.5mm, and the total area of the defect does not exceed 5% of the total area.

3. The auto aluminum plate can be polished longitudinally to a smooth surface.

FAQ

1. What Is The 5052 Aluminum Price?

It consists of aluminum ingot price and processing fee. The processing fee is related to the input cost of aluminum plate manufacturers. Different tempers and different specifications also have some effect on its price. Please email us or leave message below to get an accurate quotation.

2. What Should I Do If I Don’t Know Which Alloy to Choose From?

Don’t worry. You just need to tell us your application. Our professional sales will recommend suitable alloys and tempers for you. We also support free sample test.

3. What are the sample policies, delivery date and logistics?

We support free sample test. The delivery date is 3-25 days according to the order volume. We can arrange shipping globally. You also can use your own shipping agent.
